KVANT-903 SHOP MONITORING STATION

KVANT-903 is intended for self-contained monitoring of liquid purity during production and exploitation. Monitoring is provided on samples taken with the help of automatic analyzers (of type AZG-975).

Shop monitoring station KVANT-903 provides:

Getting pure liquid for washing of vessels and samplers and sample dilution;
Sample filtration through membrane filters;
Analysis of liquid purity in production area by microscope method and automatic analyzers;
Dilution of polluted liquid by pure petrol.

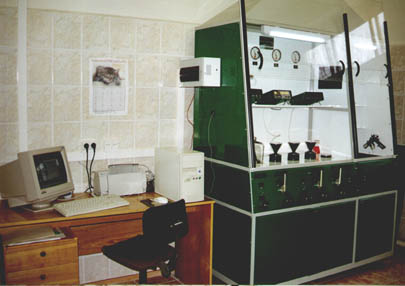

Unit 1

Unit 2

KVANT-903 can operate in heated areas of factories in following conditions:

Ambient temperature, not less, K	283
Ambient temperature, not more K	313
Air moisture (at +30^o C) not more, %	85
Atmospheric pressure, kPa	94...106

Shop monitoring station KVANT-903 may be installed at washing, assembly, testing shops with controllable atmosphere according to requirements of technological process, technical service and communications.

SPECIFICATION

Controllable liquids: petrols, benzines-solvents, cerosenes, oils, hydraulic liquids, and other transparent and optically homogeneous liquids with viscosity at 20^o C, not more cSt	40
Solvents for washing and dilution:	benzines B-70, BP-1, C2 etc.
Period of analysis of sample (100 ml), not more, min	8
Filter type (for analysis)	"Vladipor" with diameter 35 mm
Underpressure in sensor of analyzer, kPa	10...50
Supercharge pressure in tank with solvent, not more, MPa	0.1
Tankage of solvent system, not less, litres	8
Tankage of collecting tank with solvent, not less, litres	8
Power supply of vacuum pump from single phase AC network with - Voltage, V - Frequency, Hz	220 49...51
Dimensions, mm: - Unit 1 - Unit 2	1800x850x2500 1100x850x1500

Station consist of:

Unit 1: exhaust board (with electric, hydraulic, pneumatic and vacuum systems);
Unit 2: board with hydraulic and pneumatic systems;
Unit 3: unit with vacuum pumps;
Board of electromagnetic valves;
Set of electric cables;
Equipment for sample vacuumization and filtration, sensor fittings.
